General purpose box type remote wireless control electric gantry crane with drawing
Product description:

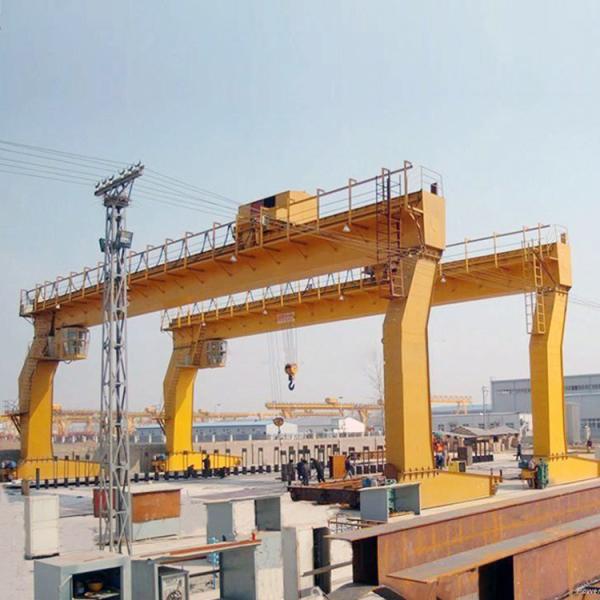

L-type single-girder gantry crane with electric hoist, L type crane is a kind of track type, it is the ideal outdoor lifting equipment, do not need to provide other than the crane equipment can use, also can be used in indoor, because of the existing building structure is not suitable for overhead crane, and additional support steel structure will lead to the loss of floor area, can increase the cantilever, For loading and unloading of goods outside the rail
1) This gantry crane consists of four main parts, for bridge structure the traveling mechanism, the trolly and the electric equipment.
2) The bridge is welded structure of boxed-type girder, individual drives are adopted for traveling mechanism on each end beam of the crane.
3) All movements of the crane are controlled in the cabin, either rigid shapes of steel (angles or tees) or flexible insulated cable shall be selected to be utilized as runway conductors and proposed in the order by the purchaser.
4) Max and Min value of environment temperature, the short of power supply, the voltage and the other data shall accord to the buyer’s demand.
Product features
1.Simple and compact structure, steady performance.
2.Easy to install and high efficiency.
3.Overload, low voltage protective device.
4.Pendent control and remote control.
5.Easy maintenance.
Gantry crane Safety feature:
1) Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
2) Gantry crane Design and construction rules:
All the standards which is required for the crane is the Chinese standard
3) Gantry crane Painting:
Primer and finishing paint
4) Color: according to your demand.
5) Average thickness: about 100 microns.
Our Advantage:
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Main Specs:
| L type single girder gantry crane |
| Model | L |
| Capacity | 5~32/5t |
| Span | Max.35m |
| Speed | Single speed, double speed, VFD speed control |
| Usage | Open ground |
| Control | Pendant control, remote control, cabin control |
| Woking class | A3~A5 |
Spare parts of L Type Single Girder Gantry Crane:
