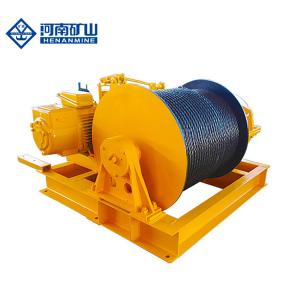

JK Type 10KN Wire Rope Winch Electronically Controlled High Speed For Factory

  • 1
  • 2

Brand Name : Kuangshan

Model Number : JM

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : USD500/Set

Payment Terms : T/T, L/C

Supply Ability : 10000sets/month

Delivery Time : 20work days

Packaging Details : Carton

Name : JK Type Electronically Controlled High Speed Winch For Factory

Work Duty : M3-M5

Type : JK

Working temperature : -10 ~45

Main electrical parts : Schneider

Voltage : 220-415V

Usage : Lift Winch

Rated Load : 10KN

Contact Now

JK Type Electronically Controlled High Speed Winch For Factory

A winch, a light and small lifting device that uses a drum to wind a wire rope or chain to lift or pull heavy objects, also known as a winch. The winch can lift heavy objects vertically, horizontally or obliquely. There are three types of winches: manual winches, electric winches and hydraulic winches. Mainly electric winch. It can be used alone or as a component in machinery such as lifting, road construction and mine hoisting. It is widely used because of its simple operation, large amount of rope winding and convenient displacement. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for material lifting or flat dragging.

JK Type 10KN Wire Rope Winch Electronically Controlled High Speed For Factory

Y brand winch WINCH TECHNIQUE PARAMETER
Rated load (KN) Rated speed (m/min) Rope capacity (m) Rope Diameter (mm) Motor type Motor power (KN) Overall dimension (mm) Weight(Kg) Type
JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH JK0.5 5 22 190 7.7 Y100L-4 3 620*701*417 200 /
JK1 10 22 100 9.3 Y112M-4 4 620*701*417 300 /
JK1.6 16 24 150 12.5 Y132S-4 5.5 945*996*570 500 /
JK2 20 24 150 13 Y132M-4 7.5 945*996*570 550 /
KK3.2 32 25 290 15.5 YZR180L-6 15 1325*1335*840 1011 /
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900*1738*985 1500 /
JK5 50 30 300 21.5 YZR225M-6 30 1900*1620*985 2050 /
JK5B 50 25 210 21.5 YZR225M-8 22 2250*2500*1300 2264 /
JK8 80 25 160 26 YZR280S-8 45 1533*1985*1045 3000 /
JK10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100 /

Electric winch generally includes the following units:

1. motor.

2. Reduction gear box.

3. winch drum.

4. Brake.

5. electric control system.

6. optional rope guider.

If you interest,contact us anytime.
