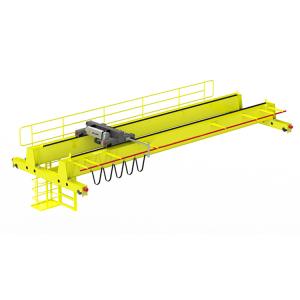

50T Double Beam Overhead Crane European Type M5 Cabin Control

High Technique Heavy duty 50Ton Double Girders European Type Overhead Crane

Product description of european model double girder overhead crane :

European standard single girder overhead crane consists of one girder beam supported on each side by an end truck. The electric hoist (electric wire rope hoist & electric chain hoist)of European standard single girder overhead crane are underhung—meaning they run on the bottom flange of the European standard single girder overhead crane.

Depending on the specific application and load capacity, the following European standard Single Girder Overhead Crane systems can range in size, complexity, and operation. Regardless of style, however, there are three universal parts for European standard Single Girder Overhead Cranes:
Bridge: The bridge is comprised of stationary or mobile rails that form a parallel runway to carry one or more trolleys across it.
Trolley: Running side to side across the bridge, this unit carries the hoist.
Hoist: The hoist is the mechanical device that hooks onto the load to raise it. Hoists can also be used independently for vertical lifting applications. The most common type, electric hoists, use single-, double-, and variable-speed electric motors to lift capacities ranging from 250 pounds to several hundred tons.

Security of european wire rope hoist lifting equipment:

1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible

2. Long and cross travel limited by means of preliminary and final limit switches or infrared anti-collision device

3. Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling

4. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact

5. High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling

6. Safety hook latch used for avoiding the lifted material out off from the hook

7. Audible and visual alarm device to inform the person stay near by the travelling crane

8. Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism

9. Protective earth conductor is fitted as standard

10. Voltage lower protection system

11. Current overload protection system and more (contact with us more details)

Main Features of KSSL model Overhead Crane:

1, Overhead traveling on the steel structure, normally in workshop, heavy working duty from A5-A8

2, Light self weight, could save steel structure cost.

3, Lifting and traveling is very accurate.

4, VVF/ frequency inverter control, 3-5 speeds to operate, very stable to lift and running.

5, Six direction action, to make sure the enough wide working area.

Our Advantage:
The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of RMB 660 million. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding, The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
Product technical parameters

Drawing of KSSL model Overhead Crane:

50T Double Beam Overhead Crane

M5 Workshop Double Beam Overhead Crane

Cabin Control Workshop Overhead Crane
