Cabin Control Double Girder Gantry Crane Rail Traveling Grapple Or Bucket Portal Crane

Henan Mine Crane Co.,Ltd.
Contact Now

Cabin Control Double Girder Gantry Crane Rail Traveling Grapple Or Bucket Portal Crane

  • 1
  • 2

Brand Name : Kuangyuan

Model Number : MZ

Certification : ISO, CE, SGS, EAC

Place of Origin : China

MOQ : 1 SET

Price : Negonation

Payment Terms : T/T, L/C

Supply Ability : 1500 sets/month

Delivery Time : About 65 days

Packaging Details : Export packingage

Type : double girder grapple or bucket portal crane

Name : cabin control box type double girder rail traveling grapple or bucket portal crane

Color : red

Working class : A6

Power Source : as you want

Keywords : Bucket portal crane

Span : 26m

load capacity : 10 tons

Warranty : 18 months

Application : Port, yard

Contact Now

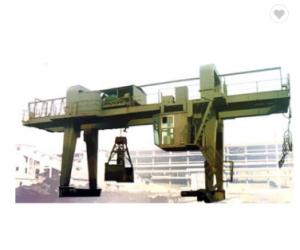

Cabin control box type double girder rail traveling grapple or bucket portal crane

1. Some description for Cabin control box type double girder rail traveling grapple or bucket portal crane

Cabin control box type double girder rail traveling grapple or bucket portal crane is usually used in open-air warehouses or along railways. His control method is usually the driver's cab or ground control. It looks in the shape of “A" in appearance, The span of double girder rail travelling grapple or bucket portal crane is 26m. Cabin control box type double girder rail travelling grapple or bucket portal crane is suitable for open-air warehouses and workshops of metallurgical, cement, chemical and other enterprises to carry ore, limestone, ore powder, coke, coal, sand and other bulk particles indoors or in the open air and between fixed spans. Grab buckets are more suitable for bulk materials under natural accumulation. When grabbing underwater materials or special materials, they must be specifically mentioned in the order.

2. Details for Cabin control box type double girder rail traveling grapple or bucket portal crane

Lifting capacity t 10
Span m 26
Lifting height m

10 meters above the track/

10 meters below the track

handcart travelling speed m/min 49.6
Crane travelling speed m/min 46.9
Total weight of crane t 116.5
Max. wheel presure for crane kN 22.7
Cart wheel distance mm 8000
Handcart wheel distance mm 2940
Left arm length mm 9850
Right arm length mm 10450
Motor of lifting / YZR280M-10Z
Motor of Cart travel / YZR160L-6

Main feature:

1. Heavy duty double beam/girder gantry with grab as lifting tool.

2. Working duty could be A6-A8.

3. Soft start, 3-5 speeds to operate, very stable to lift and running.

4. Six direction action, to make sure the enough wide working area.

5. Strong box type steel structure of crane

6. Full safety system as follows:

Weight overload protection

Emergency stop system

Over current protection,Short-circuit protection

Phase sequence protection

Zero position protection

Voltage loss protection

crane long traveling and cross traveling limit switch and stopper

Lifting overhigh and overlow limit switch

Cabin Control Double Girder Gantry Crane Rail Traveling Grapple Or Bucket Portal Crane

3. FAQ:

1). How many operating methods for my selection?

Standard operating methods: A: remote control with push buttons B: cabin(space capsule seat) control with joystick. Choose any type as you like.

2). Can this type work in hazardous environment? Sure! We can customize for you, acid proof or explosion proof, no problem for that.

3). Can you provide the serious lifting tools? Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

4). How can we install the crane? Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

5). Safety device Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
